AWS Cloud Architecture for Multi-Tenant SaaS – FacturaScan 360
Overview
This document outlines the technical architecture of FacturaScan 360 as a scalable, secure, and modular SaaS platform hosted on Amazon Web Services (AWS). The system supports multi-tenant operation, automatic OCR of PDF invoices, semantic validation, structured storage, and alerting. It is designed for long-term extensibility, regulatory compliance, and efficient operation under variable load.
1. Core Architectural Objectives
The architecture is defined to satisfy the following primary requirements:
- Secure multi-tenant isolation (logical or physical separation).
- Event-driven, decoupled orchestration of invoice processing pipeline.
- Native integration with AWS OCR (Textract).
- Low-latency, scalable document storage and structured data persistence.
- User authentication and authorization via AWS Cognito.
- Email and messaging-based alerts for invoice anomalies.
- Optional EC2-based deployment for clients with on-prem constraints.
- Extensibility for future modules including dashboards, AI, MCP and ERP integration.

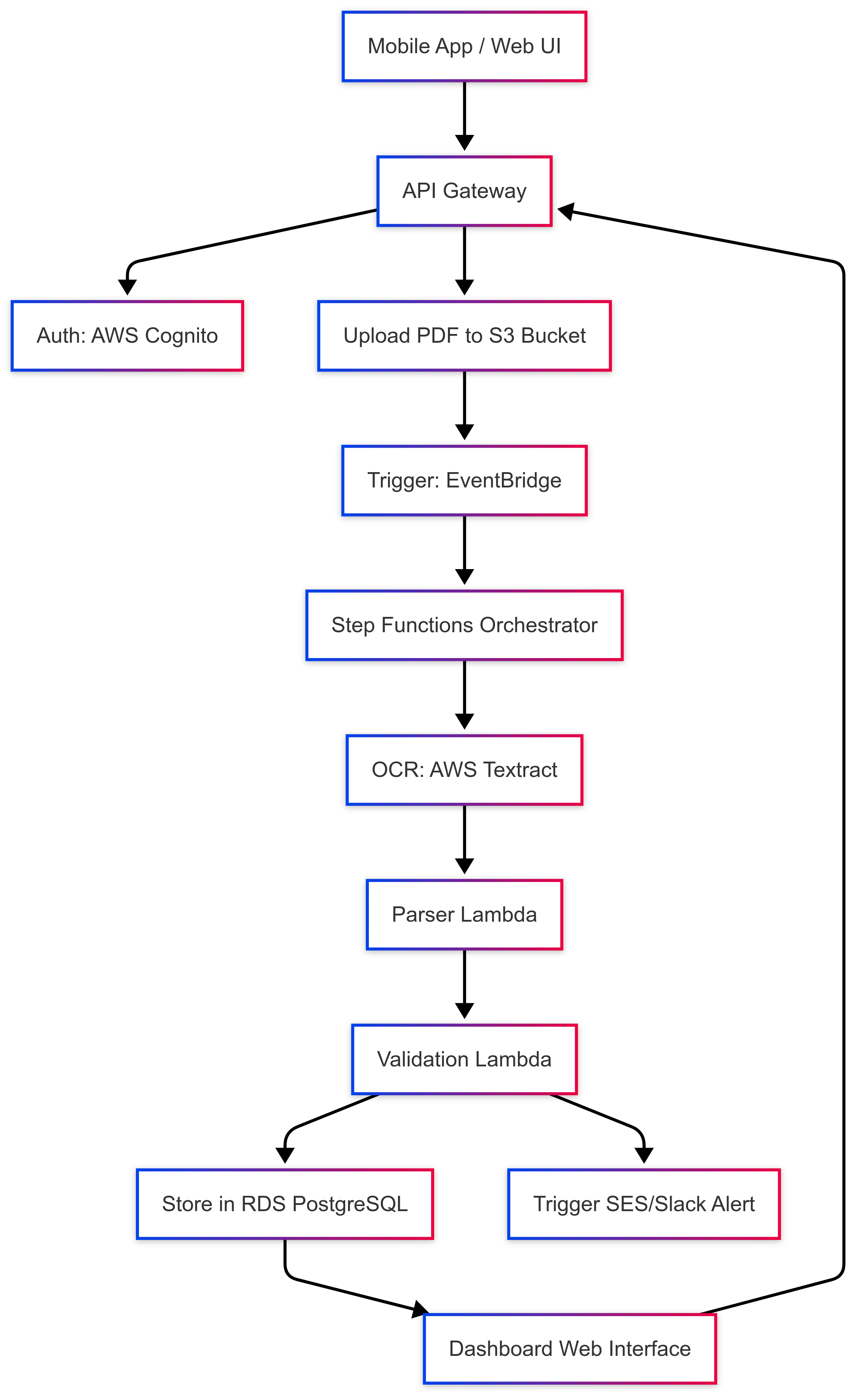

2. High-Level Component Diagram (Logical View)
3. Component Breakdown
3.1. User Interaction Layer
| Component | Description |
|---|---|
| Web Dashboard | Backoffice for browsing invoices, validation status, errors. |
| Mobile App (Flutter) | Enables photo capture and upload of invoice PDFs. |
| API Gateway | Serves as the main entry point for both mobile and web clients. |
3.2. Authentication and Access Control
| Component | Functionality | Notes |
|---|---|---|
| AWS Cognito | Manages user pools, registration, login | Token-based (JWT) authentication |
| Role mapping | Support for roles: viewer, validator, admin | Future RLS integration in PostgreSQL |
3.3. Storage and Persistence
| Type | AWS Service | Purpose |
|---|---|---|
| Unstructured | S3 | Stores uploaded invoice PDFs |
| Structured | RDS PostgreSQL | Stores parsed invoice data, metadata, errors |
| Alternative | DynamoDB (future) | For metadata if latency/scale requires |
3.4. Invoice Processing Pipeline
| Phase | Implementation | Description |
|---|---|---|
| Trigger | Amazon S3 → EventBridge | Upload triggers event upon file creation |
| Orchestration | AWS Step Functions | Manages the entire pipeline sequentially |
| OCR | AWS Textract (Sync API) | Extracts raw fields from invoice PDF |
| Parsing | AWS Lambda (Python) | Normalizes fields, converts to structured format |
| Validation | AWS Lambda (Python) | Applies rule-based semantic checks |
| Storage | Lambda → RDS (PostgreSQL) | Inserts final validated records into DB |
| Alerting | Amazon SES / Webhooks to Slack | Notifies user or admin about errors or issues |
3.5. Dashboard and UI Layer
-
Developed with Flask + Jinja2 + Tailwind CSS.
-
Fetches data via internal API from PostgreSQL.
-
Provides:
- Invoice list, grouped by supplier/date/status.
- Visual validation status.
- Error inspection interface.
4. Multi-Tenant Strategy
| Mode | Description |
|---|---|
| Logical isolation | Use tenant_id in all DB records (RLS in PostgreSQL) |
| Authentication domain | Users assigned to specific tenants via Cognito groups |
| Storage | Optional prefix-based isolation in S3 buckets |
| Dashboards | Filtered views by tenant_id in query layer |
This model supports growth from single-tenant deployments to isolated multi-tenant architecture without major redesign.
5. Alert and Notification Subsystem
| Type | Technology | Description |
|---|---|---|
| Email Alerts | Amazon SES | Sent to users on validation failure |
| Message Alerts | Slack / MS Teams | Optional webhook connectors for real-time ops |
| Logging | CloudWatch | Stores validation traces, errors, performance |
6. Optional EC2-Based Deployments
Certain clients may require private environments due to compliance. The architecture allows deployment on dedicated EC2 nodes with:
- Reverse proxy (Nginx) in front of API and dashboard.
- S3-compatible object storage (e.g., MinIO).
- PostgreSQL on a secured instance with backup policies.
- VPN or static IP access control.
These are offered under a separate service-level agreement (SLA).
7. Extensibility and Future Modules
The architecture supports future integration of the following modules without refactoring core services:
| Module | Integration Notes |
|---|---|
| Explainable AI (MCP) | Connected to parser output and validation logs |
| Advanced dashboards | Optional BI layer (e.g., Superset, Metabase, Streamlit) |
| ERP integration | Webhooks + REST APIs with Odoo, Holded, etc. |
| Billing system | Stripe, Chargebee via API gateway routing |
| User roles and permissions | Managed through Cognito groups + RLS PostgreSQL |
8. Infrastructure as Code and Monitoring
To ensure reproducibility, scaling, and auditing, the infrastructure is provisioned and managed with:
| Aspect | Tooling |
|---|---|
| Provisioning | Terraform / AWS CDK |
| CI/CD Pipelines | GitHub Actions / CodePipeline |
| Monitoring | CloudWatch Metrics + Alarms |
| Logging | CloudWatch Logs + Lambda insights |
9. Security and Compliance
| Domain | Mechanism |
|---|---|
| In-transit | HTTPS via ACM / Cognito Auth |
| At-rest | S3 encryption (SSE), RDS encryption (KMS) |
| IAM | Least-privilege roles per Lambda / service |
| Backups | RDS snapshots + S3 versioning |
| Auditing | CloudTrail for all control plane activity |
10. Estimated Monthly Cost (MVP Range)
| Service | Assumed Volume (per tenant) | Estimated Monthly Cost |
|---|---|---|
| S3 Storage | 1–2 GB | ~€0.05 |
| AWS Textract | 100–200 pages | ~€2.00 |
| Lambda (parser + validation) | 10,000 calls @ 128MB | ~€0.50 |
| RDS PostgreSQL (shared) | t3.micro, 20GB | ~€12.00 (shared) |
| SES Email | 500 emails | ~€0.05 |
| EC2 Hosting | t3.micro or t3a.micro | ~€8.00 |
Total estimated base cost per client: €3–5/month + shared infrastructure.
